Rolamento de rolo de agulhas

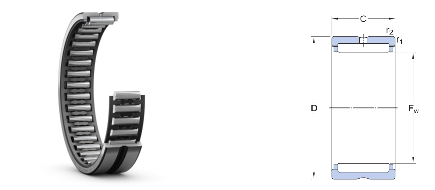

Agulha de rolo-4. gif

Série RNA 4800 Fw mm D mm C mm ≈ KGS
RNA 4822 120 140 30 0.6700
RNA 4824 130 150 30 0.7300
RNA 4826 145 165 35 0.9900
RNA 4828 155 175 35 1.0500
RNA 4830 165 190 40 1.6000
RNA 4832 175 200 40 1.7000
RNA 4834 185 215 45 2.5500
RNA 4836 195 225 45 2.7000
RNA 4838 210 240 50 3.2000
RNA 4840 220 250 50 3.3500
RNA 4844 240 270 50 3.6000
RNA 4848 265 300 60 5.4000
ARN 4852 285 320 60 5.8000
RNA 4856 305 350 69 9.3000
RNA 4860 330 380 80 12.5000
RNA 4864 350 400 80 13.4000
RNA 4868 370 420 80 14.6000
RNA 4872 390 440 80 14.8000
RNA 4876 415 480 100 30.0000

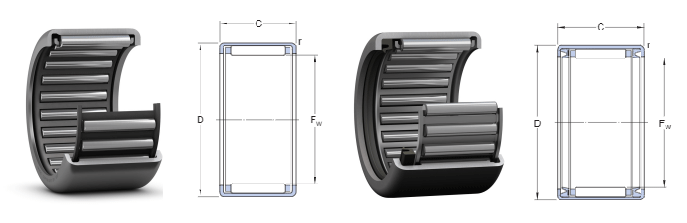

Agulha rolante-3. gif

Série RNA 4900 Fw mm D mm C mm ≈ KGS
RNA 4900 RNA 4900 2RS 14 22 13 0.0160
RNA 4901 RNA 4901 2RS 16 24 13 0.0200
RNA 4902 RNA 4902 2RS 20 28 13 0.0200
RNA 4903 RNA 4903 2RS 22 30 13 0.0220
RNA 4904 RNA 4904 2RS 25 37 17 0.0500
RNA 4905 RNA 4905 2RS 30 42 17 0.0600
RNA 4906 RNA 4906 2RS 35 47 17 0.0700
ARN 4907 RNA 4907 2RS 42 55 20 0.1100
RNA 4908 RNA 4908 2RS 48 62 22 0.1400
RNA 4909 RNA 4909 2RS 52 68 22 0.1500
ARN 4910 RNA 4910 2RS 58 72 22 0.1600
RNA 4911 63 80 25 0.2600
RNA 4912 68 85 25 0.2800
RNA 4913 72 90 25 0.3100
RNA 4914 80 100 30 0.4600
RNA 4915 85 105 30 0.4900
RNA 4916 90 110 30 0.5200
RNA 4917 100 120 35 0.6600
RNA 4918 105 125 35 0.7500
RNA 4919 110 130 35 0.7200
RNA 4920 115 140 40 1.1500
RNA 4922 125 150 40 1.2400
RNA 4924 135 165 45 1.8000
RNA 4926 150 180 50 2.2000
RNA 4928 160 190 50 2.3500
RNA 4930 170 210 60 4.0900
RNA 4932 180 220 60 4.3100
RNA 4934 190 230 60 4.5300
RNA 4936 205 250 69 6.2500
RNA 4938 215 260 69 6.5000
RNA 4940 225 280 80 10.4000
RNA 4944 245 300 80 11.2000
RNA 4948 265 320 80 12.0000
Rana492 15 28 13 0.0200
Rana493 5 11 10 0.0050
RNA494 6 12 10 0.0163
RNA495 7 13 10 0.0059
Rana496 8 15 10 0.0070
Rana497 9 17 10 0.0093
Rana498 10 19 11 0.0126
Rana499 12 20 11 0.0136
RNA 49/22 28 39 17 0.0500
RNA 49/28 32 45 17 0.0700
RNA 49/32 40 52 20 0.0900
RNA 49/38 45 58 20 0.1200
RNA 49/42 50 65 22 0.1740
RNA 49/48 55 70 22 0.2000
RNA 49/52 60 75 22 0.2050
RNA 49/58 65 82 25 0.2750
RNA 49/62 70 88 25 0.3200
ARN 49/68 75 95 30 0.4700

Série NA 6900 d mm D mm C mm ≈ KGS
NA6901 12 24 22 0.0460
Natas 02 15 28 23 0.0640
Natas 03 17 30 23 0.0690
NA6904 20 37 30 0.1410
NA6905 25 42 30 0.1620
NA6906 30 47 30 0.1850
Natas 07 35 55 36 0.3100
NA6908 40 62 40 0.4260
Natas 09 45 68 40 0.4370
NA6910 50 72 40 0.5290
NA6911 55 80 45 0.7260
NA6912 60 85 45 0.7580
Natas13 65 90 45 0.7790
NA6914 70 100 54 1.3400
NA6915 75 105 54 1.4500
NA6916 80 110 54 1.5300
NA6917 85 120 63 2.2500
NA6918 90 125 63 2.4400
Nass 19 95 130 63 2.6300
NA6920 115 140 71 4.0000
Orador/22 22 31 39 0.1500
Orador/28 28 31 45 0.1800
Orador/32 32 52 36 0.2800

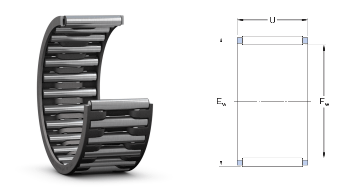

Agulha a rolar. gif

Série K Fw mm Eca mm Umm ≈ KGS
Como o oposto do que passou 3 5 7 0.0003
Como o oposto de khaksstn 3 5 9 0.0004
O oposto do que disseste 3 6 7 0.0004
K4X7X7TN 4 7 7 0.0005
K4X7X10TN 4 7 10 0.0007
K5X8X8TN 5 8 8 0.0007
K5X8X10TN 5 8 10 0.0009
K6X9X8TN 6 9 8 0.0008
K6X9X10TN 6 9 10 0.0011
K6X10X13TN 6 10 13 0.0019
Kahksaaksthn 7 9 7 0.0006
K7X10X8 7 10 8 0.0017
K8X11X8 8 11 8 0.0018
K8X11X10 8 11 10 0.0020
K8X11X13 8 11 13 0.0032
K8X12X10 8 12 10 0.0035
K9X12X10 9 12 10 0.0029
K9X12X13 9 12 13 0.0038
K10X13X10 10 13 10 0.0032
K10X13X13 10 13 13 0.0041
K10X13X16 10 13 16 0.0051
K10X14X10 10 14 10 0.0041
K10X16X12 10 16 12 0.0081
K12X15X10 12 15 10 0.0035
K12X15X13 12 15 13 0.0045
K12X16X13 12 16 13 0.0063
K12X17X13 12 17 13 0.0081
K12X18X12 12 18 12 0.0093
K14X18X10 14 18 10 0.0040
K14X18X13 14 18 13 0.0065
K14X18X15 14 18 15 0.0083
K14X18X17 14 18 17 0.0080
K14X20X12 14 20 12 0.0085
K15X18X17 15 18 17 0.0072
K15X19X10 15 19 10 0.0050
K15X19X13 15 19 13 0.0070
K15X19X17 15 19 17 0.0095
K15X20X13 15 20 13 0.0070
K15X21X15 15 21 15 0.0110
K15X21X21 15 21 21 0.0170
K16X20X10 16 20 10 0.0055
K16X20X13 16 20 13 0.0075
K16X20X17 16 20 17 0.0100
K16X22X12 16 22 12 0.0100
K16X22X16 16 22 16 0.0120
K16X22X20 16 22 20 0.0170
K16X24X20 16 24 20 0.0220
K17X21X10 17 21 10 0.0055
K17X21X13 17 21 13 0.0065
K17X1X17 17 21 17 0.0095
K18X22X10 18 22 10 0.0060
K18X22X13 18 22 13 0.0080
K18X22X17 18 22 17 0.0110
K18X24X12 18 24 12 0.0120
K18X24X13 18 24 13 0.0130
K18X25X22 18 25 22 0.0230
K19KsAksa13 19 23 13 0.0080
K19KsAksa17 19 23 17 0.0110
K20X24X10 20 24 10 0.0065
K20X24X13 20 24 13 0.0090
K20X24X17 20 24 17 0.0120
K20X26X12 20 26 12 0.0110
K20X26X13 20 26 13 0.0120
K20X26X17 20 26 17 0.0160
K20X26X20 20 26 20 0.0190
K20X28X16 20 28 16 0.0200
K20X28X20 20 28 20 0.0270
K20X28X25 20 28 25 0.0320
K20X30X30 20 30 30 0.0490
K21X25X13 21 25 13 0.0090
K22X26X10 22 26 10 0.0075
KAAKSATKS13 22 26 13 0.0095
Kkkkk17 22 26 17 0.0120
K'aaksdks17 22 28 17 0.0180
K22X29X16 22 29 16 0.0160
K22X30X15 22 30 15 0.0260
K22X32X24 22 32 24 0.0430
K23X35X16 23 35 16 0.0450
K24X28X10 24 28 10 0.0085
K24X28X13 24 28 13 0.0100
K24X28X17 24 28 17 0.0130
K24X30X17 24 30 17 0.0190
K24X30X31ZW 24 30 31 0.0320
K25X29X10 25 29 10 0.0085
K25X29X13 25 29 13 0.0110
K25X29X17 25 29 17 0.0140
Kkkksa0ks17 25 30 17 0.0160
K25X30X20 25 30 20 0.0180
K25X30X26ZW 25 30 26 0.0190
K'aKhKsA1Ks17 25 31 17 0.0190
K25X31X21 25 31 21 0.0200
K25X32X16 25 32 16 0.0210
K25X33X20 25 33 20 0.0330
K K K S A K S A K S 25 33 24 0.0390
Kkkkkkk0 25 35 30 0.0650
K26X30X13 26 30 13 0.0110
K'tksa0ks17 26 30 17 0.0150
K'tksa0ks'azo 26 30 22 0.0120
Rir e rir 13 28 33 13 0.0130
Ria e ria 17 28 33 17 0.0170
K28X34X17 28 34 17 0.0240
K28X35X16 28 35 16 0.0240
K28X35X18 28 35 18 0.0270
K28X40X25 28 40 25 0.0700
K30X34X13 30 34 13 0.0140
K30X35X13 30 35 13 0.0140
Bolos0Kasakhks17 30 35 17 0.0190
Bolo 30 35 27 0.0300
Bolo0Kasahks16 30 37 16 0.0270
K30X37X18 30 37 18 0.0300
K30X40X18 30 40 18 0.0480
K30X40X30 30 40 30 0.0730
Bolos, bolos, bolos13 32 37 13 0.0180
Bolos, bolos, bolos17 32 37 17 0.0190
vou reverter isso 32 37 27 0.0300
Bolos e bolachas 32 38 20 0.0300
Bolos16 32 39 16 0.0370
Bolos18 32 39 18 0.0310
40x40x40 32 40 25 0.0490
K32X40X42ZW 32 40 42 0.0970
Bolos 46x46 32 46 32 0.1190
Bolos 40x13 35 40 13 0.0190
K35X40X17 35 40 17 0.0210
K35X40X25 35 40 25 0.0310
Bolos 40 Ksah 35 40 27 0.0410
K35X42X16 35 42 16 0.0340
K35X42X18 35 42 18 0.0340
K35X42X20 35 42 20 0.0370
K35X42X30 35 42 30 0.0670
K35X45X20 35 45 20 0.0560
Bolo de 45 kg 35 45 30 0.0800
Kahks42x17 37 42 17 0.0220
43x17 38 43 17 0.0290
43 Ksah 38 43 27 0.0430
K38X46X20 38 46 20 0.0470
46kg 38 46 32 0.0760
44k bastões 39 44 26 0.0450
K40X45X13 40 45 13 0.0220
K40X45X17 40 45 17 0.0310
K40X45XH 40 45 27 0.0460
K40X47X18 40 47 18 0.0390
K40X47X20 40 47 20 0.0420
K40X48X20 40 48 20 0.0490
K42X47X13 42 47 13 0.0180
K42X47X17 42 47 17 0.0320
K42X47X30ZW 42 47 30 0.0540
K42X50X20 42 50 20 0.0530
K43X48X17 43 48 17 0.0300
K43X48X27 43 48 27 0.0500
K45X50X17 45 50 17 0.0340
K45Kskh0Ksah 45 50 27 0.0510
K45X52X18 45 52 18 0.0420
K45X53X20 45 53 20 0.0550
K45KSHKH1 45 53 21 0.0600
K45KSHKH 45 53 28 0.0810
K45X59X18 45 59 18 0.1050
K45X59X32 45 59 32 0.1480
K47Kskhx17 47 52 17 0.0350
K47Kskkhxhh 47 52 27 0.0510
K50X55X13,5 50 55 13.5 0.0300
K50X55X17 50 55 17 0.0350
K50X55X20 50 55 20 0.0430
K50X55X30 50 55 30 0.0650
K50X57X18 50 57 18 0.0470
K50X58X20 50 58 20 0.0750
K50X58X25 50 58 25 0.0900
K52X57X12 52 57 12 0.0240
K55X60X20 55 60 20 0.0400
K55X60X27 55 60 27 0.0600
K55X60X30 55 60 30 0.0710
K55X62X18 55 62 18 0.0520
K55X63X20 55 63 20 0.0670
Kkkkstkk 55 63 25 0.0800
Kkkkstksh 55 63 32 0.1020
K58X65X18 58 65 18 0.0520
K58X65X36ZW 58 65 36 0.1270
K60X65X20 60 65 20 0.0520
K60X65X30 60 65 30 0.0770
K60X66X33ZW 60 66 33 0.1040
K60X66X40ZW 60 66 40 0.1160
K60X68X20 60 68 20 0.0710
K60X68X23 60 68 23 0.0940
K60X68X25 60 68 25 0.0890
K60X68X30ZW 60 68 30 0.1290
K60X75X42 60 75 42 0.2400
K62X70X40ZW 62 70 40 0.1740
K64X70X16 64 70 16 0.0530
K65X70X20 65 70 20 0.0560
K65X70X30 65 70 30 0.0830
eu vou-te matar 65 73 23 0.1080
K65X73X30 65 73 30 0.1410
K68X74X20 68 74 20 0.0710
K68X74X30 68 74 30 0.1000
K68X74X35ZW 68 74 35 0.1200
K70X76X20 70 76 20 0.0710
Tosse0chhhh0 70 76 30 0.1100
K70X78X30 70 78 30 0.1480
K72X80X20 72 80 20 0.0980
Ao contrário de ao contrário de 73 79 20 0.0750
K75X81X20 75 81 20 0.0790
K75X81X30 75 81 30 0.1140
Khhhhhhhh 75 83 23 0.1240
Khhhhhhhhhh 75 83 30 0.1470
Khhhhhhhhhhhhhhhh 75 83 35 0.1820
K75X83X40ZW 75 83 40 0.2110
K80X86X20 80 86 20 0.0600
K80X88X30 80 88 30 0.1380
K80X88X40ZW 80 88 40 0.2270
K80X88X46ZW 80 88 46 0.2600
K85X92X20 85 92 20 0.1020
Beijossssssss 90 97 20 0.1090
Ksssdhxh 90 98 27 0.1500
K90X98X30 90 98 30 0.1720
K95X103X30 95 103 30 0.1650
K95X103X40ZW 95 103 40 0.2660
K100X107X21 100 107 21 0.1200
K100X108X27 100 108 27 0.1850
K100X108X30 100 108 30 0.1800
K105X112X21 105 112 21 0.1290
K110X117X24 110 117 24 0.1720
K110X118X30 110 118 30 0.2170
K115X123X27 115 123 27 0.2000
K120X127X24 120 127 24 0.1650
K125x133xSakh 125 133 35 0.2750
K130X137X24 130 137 24 0.1700
K135X143X35 135 143 35 0.3000
K145X153X26 145 153 26 0.2620
K150X160X46 150 160 46 0.5700
K155X163X26 155 163 26 0.2650
K160X170X46 160 170 46 0.5500
K165X173X26 165 173 26 0.3200
K175X183X32 175 183 32 0.4000
K185X195KSAH 185 195 37 0.6070
K195 KSA05 KSA 195 205 37 0.6200
K210X220X42 210 220 42 0.7400
K220X230X42 220 230 42 0.7900
K240X250X42 240 250 42 0.8500
K265X280X50 265 280 50 1.8100

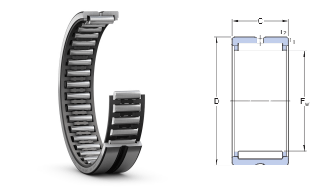

Agulha de rolo-5. gif

Série NK Fw mm D mm C mm ≈ KGS
NK 5/12 TN 5 10 10 0.0100
NK 6/10 TN 6 12 10 0.0100
NK 6/12 TN 6 12 12 0.0100
NK 7/10 TN 7 14 10 0.0100
NK 7/12 TN 7 14 12 0.0100
NK 8/12 TN 8 15 12 0.0100
NK 8/16 TN 8 15 16 0.0100
NK 9/12 TN 9 16 12 0.0100
NK 9/16 TN 9 16 16 0.0100
NK 10/12 TN 10 17 12 0.0100
NK 10/16 TN 10 17 16 0.0100
NK 12/12 12 19 12 0.0100
NK 12/16 12 19 16 0.0200
NK13.5/12 13.5 22 12 0.0100
NK 14/16 14 22 16 0.0200
NK 14/20 14 22 20 0.0300
NK 15/16 15 23 16 0.0200
NK 15/20 15 23 20 0.0300
NK 16/16 16 24 16 0.0200
NK 16/20 16 24 20 0.0300
NK 17/16 17 25 16 0.0200
NK 17/20 17 25 20 0.0300
NK 18/16 18 26 16 0.0300
NK 18/20 18 26 20 0.0300
NK 19/16 19 27 16 0.0300
NK 19/20 19 27 20 0.0300
NK 20/16 20 28 16 0.0300
NK 20/20 20 28 20 0.0300
NK 21/16 21 29 16 0.0300
NK 21/20 21 29 20 0.0400
NK 22/16 22 30 16 0.0300
NK 22/20 22 30 20 0.0400
NK 24/16 24 32 16 0.0300
NK 24/20 24 32 20 0.0400
NK 25/16 25 33 16 0.0300
NK 25/20 25 33 20 0.0400
NK 26/16 26 34 16 0.0300
NK 26/20 26 34 20 0.0400
NK 28/20 28 37 20 0.0500
NK 28/30 28 37 30 0.0800
NK 29/20 29 38 20 0.0500
NK 29/30 29 38 30 0.0800
NK 30/20 30 40 20 0.0700
NK 30/30 30 40 30 0.1000
NK 32/20 32 42 20 0.0700
NK 32/30 32 42 30 0.1000
NK 35/20 35 45 20 0.0700
NK 35/30 35 45 30 0.1100
NK 37/20 37 47 20 0.0800
NK 37/30 37 47 30 0.1100
NK 38/20 38 48 20 0.0800
NK 38/30 38 48 30 0.1200
NK 40/20 40 50 20 0.0800
NK 40/30 40 50 30 0.1300
NK 42/20 42 52 20 0.0900
NK 42/30 42 52 30 0.1300
NK 43/20 43 53 20 0.0900
NK 43/30 43 53 30 0.1300
NK 45/20 43 55 20 0.0900
NK 45/30 43 55 30 0.1400
NK 47/20 47 57 20 0.1000
NK 47/30 47 57 30 0.1400
NK 50/25 50 62 25 0.1600
NK 50/35 50 62 35 0.2200
NK 55/25 55 68 25 0.1800
NK 55/35 55 68 35 0.2500
NK 60/25 60 72 25 0.1900
NK 60/35 60 72 35 0.2600
NK 65/25 65 78 25 0.2200
NK 65/35 65 78 35 0.3100
NK 68/25 68 82 25 0.2400
NK 68/35 68 82 35 0.3400
NK 70/25 70 85 25 0.2600
NK 70/35 70 85 35 0.3700
NK 73/25 73 90 25 0.3000
NK 73/35 73 90 35 0.4300
NK 75/25 75 92 25 0.3200
NK 75/35 75 92 35 0.4500
NK 80/25 80 95 25 0.3000
NK 80/35 80 95 35 0.4300
NK 85/25 85 105 25 0.4300
NK 85/35 85 105 35 0.6000
NK 90/25 90 110 25 0.4500
NK 90/35 90 110 35 0.6300
NK 95/26 95 115 26 0.4900
NK 95/36 95 115 36 0.6800
NK 100/26 100 120 26 0.5200
NK 100/36 100 120 36 0.7200
NK 105/26 105 125 26 0.5400
NK 105/36 105 125 36 0.7100
NK 110/30 110 130 30 0.6500
NK 110/40 110 130 40 0.8300
NK 120/40 120 160 40 0.9100
NK 130/40 130 150 40 0.9800

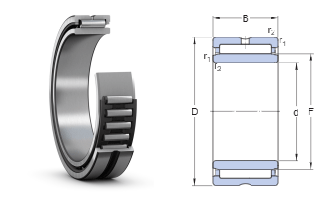

Agulha de rolo-6. gif

Série GGI Fw mm D mm C mm ≈ KGS
NKI 5/12 TN 5 15 12 0.0100
NKI 5/16 TN 5 15 16 0.0200
NKI 6/12 TN 6 16 12 0.0100
NKI 6/16 TN 6 16 16 0.0200
NKI 7/12 TN 7 17 12 0.0100
NKI 7/16 TN 7 17 16 0.0200
NKI 9/12 9 19 12 0.0200
NKI 9/16 9 19 16 0.0200
NKI 10/16 10 22 16 0.0300
NKI 10/20 10 22 20 0.0400
NKI 12/16 12 24 16 0.0300
NKI 12/20 12 24 20 0.0400
NKI 15/16 15 27 16 0.0400
NKI 15/20 15 27 20 0.0500
NKI 17/16 17 29 16 0.0400
NKI 17/20 17 29 20 0.0500
NKI 20/16 20 32 16 0.0500
NKI 20/20 20 32 20 0.0600
NKI 22/16 22 34 16 0.0500
NKI 22/20 22 34 20 0.0700
NKI 25/20 25 38 20 0.0800
NKI 25/30 25 38 30 0.1200
NKI 28/20 28 42 20 0.1000
NKI 28/30 28 42 30 0.1500
NKI 30/20 30 45 20 0.1100
NKI 30/30 30 45 30 0.1700
NKI 32/20 32 47 20 0.1200
NKI 32/30 32 47 30 0.1800
NKI 35/20 35 50 20 0.1300
NKI 35/30 35 50 30 0.1900
NKI 38/20 38 53 20 0.1400
NKI 38/30 38 53 30 0.2100
NKI 40/20 40 55 20 0.1400
NKI 40/30 40 55 30 0.2200
NKI 42/20 42 57 20 0.1500
NKI 42/30 42 57 30 0.2200
NKI 45/25 45 62 25 0.2300
NKI 45/35 45 62 35 0.3200
NKI 50/25 50 68 25 0.2700
NKI 50/35 50 68 35 0.3800
NKI 55/25 55 72 25 0.2700
NKI 55/35 55 72 35 0.3800
NKI 60/25 60 82 25 0.3900
NKI 60/35 60 82 35 0.5500
NKI 65/25 65 90 25 0.4700
NKI 65/35 65 90 35 0.6600
NKI 70/25 70 95 25 0.5200
NKI 70/35 70 95 35 0.7400
NKI 75/25 75 105 25 0.6400
NKI 75/35 75 105 35 0.9100
NKI 80/25 80 110 25 0.6800
NKI 80/35 80 110 35 0.9600
NKI 85/26 85 115 26 0.7400
NKI 85/36 85 115 36 1.0500
NKI 90/26 90 120 26 0.7800
NKI 90/36 90 120 36 1.1000
NKI 95/26 95 125 26 0.8200
NKI 95/36 95 125 36 1.1500
NKI 100/30 100 130 30 0.9900
NKI 100/40 100 130 40 1.3500
NKI 110/30 110 130 30 0.6070
NKI 110/40 110 140 40 1.4600
NKI 120/40 120 160 40 1.6480
NKI 130/32 130 170 32 2.1760
NKI 140/32 140 180 32 2.0660
NKI 150/32 150 190 32 2.5000


Série RNA 4800 Fw mm D mm C mm ≈ KGS
RNA 4822 120 140 30 0.6700
RNA 4824 130 150 30 0.7300
RNA 4826 145 165 35 0.9900
RNA 4828 155 175 35 1.0500
RNA 4830 165 190 40 1.6000
RNA 4832 175 200 40 1.7000
RNA 4834 185 215 45 2.5500
RNA 4836 195 225 45 2.7000
RNA 4838 210 240 50 3.2000
RNA 4840 220 250 50 3.3500
RNA 4844 240 270 50 3.6000
RNA 4848 265 300 60 5.4000
RNA 4852 285 320 60 5.8000
RNA 4856 305 350 69 9.3000
RNA 4860 330 380 80 12.5000
RNA 4864 350 400 80 13.4000
RNA 4868 370 420 80 14.6000
ARN 4872 390 440 80 14.8000
RNA 4876 415 480 100 30.0000
